FlexiVIEW FV-1 Android TV, GoCAL Serial Debug Port Information

New Zealand Customers

---

You can now buy this fun Android Video Player direct from www.flexiview.co.nz


How to create FlexiView FV-1 OSK Firmware updates

---

Thanks to work done by Angus Gratton in discovering how to read and write the proprietary .OSK update file format, it's now possible to create your own FV-1 firmware images. The tools for doing this are on GitHub at https://github.com/projectgus/mboot-tools

He has also made great progress with running Debian Linux on this computer. Background and installation info available from the ProjectGus blog at http://projectgus.com/2012/01/mesada-flexiview-fv-1-androidtv-technical-review/ and http://projectgus.com/2012/02/debian-on-flexiview-fv-1/



Serial Port Pinout for debugging

---

The FV-1 Android TV debug serial port speed is 115200 and the pin order that is GND, RX, TX, 3.3V - from the point of view of the FV-1 the data goes in on RX and gets sent out by TX.

An STK-500 AVR development board was used to connect to the port as it has a spare RS-232 to TTL level shifter on it.  Pictures of the setup are below.

FV-1 Serial Console Pinout

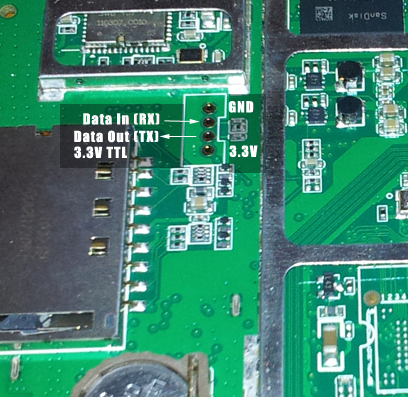

The gray shaded area below shows the pinout:

Here is the serial output from the FV-1 boot sequence:

+---------------------------------------------------+
| Mboot for android system |
| Ver:1.11 Build date:May 3 2011 |
| Mboot write by mesada corporation |
+---------------------------------------------------+
CPU: S5PV210 at 1000MHz(OK)
APLL = 1000MHz, HclkMsys = 200MHz, PclkMsys = 100MHz
MPLL = 667MHz, EPLL = 80MHz
HclkDsys = 166MHz, PclkDsys = 83MHz
HclkPsys = 133MHz, PclkPsys = 66MHz
SCLKA2M = 200MHz
start from sdmmc_ch0
mboot version:M1100150

Please select,Leave Time is 0 second ...

SECRETIC UUID:
0x4d,0x48,0x00,0x00,0x00,0x00,0x16,0x96,
0x00,0x00,0x03,0x11,0x25,0xf1,0x2e,0x9b,

WiFi-MAC: 8C-F9-XX-XX-XX-XX

initrd_start = 30c00040, initrd_size = 13cffc

Starting kernel ...

Uncompressing Linux................................................................................................................................................................................................................. done, booting the kernel.
copy: bad source 0
mout_audss: bad source 0
vic_pm_register: too few VICs, increase CONFIG_ARM_VIC_NR
vic_pm_register: too few VICs, increase CONFIG_ARM_VIC_NR
no memory for fimc0
init: cannot open '/initlogo.rle'
init: cannot find '/system/etc/install-recovery.sh', disabling 'flash_recovery'
sh: can't access tty; job control turned off

#

Also typing "ls" at the prompt returns:
d
etc
system
sys
sbin
proc
modules
init.smdkv210.rc
init.rc
init.goldfish.rc
init
default.prop
data
root
dev

#

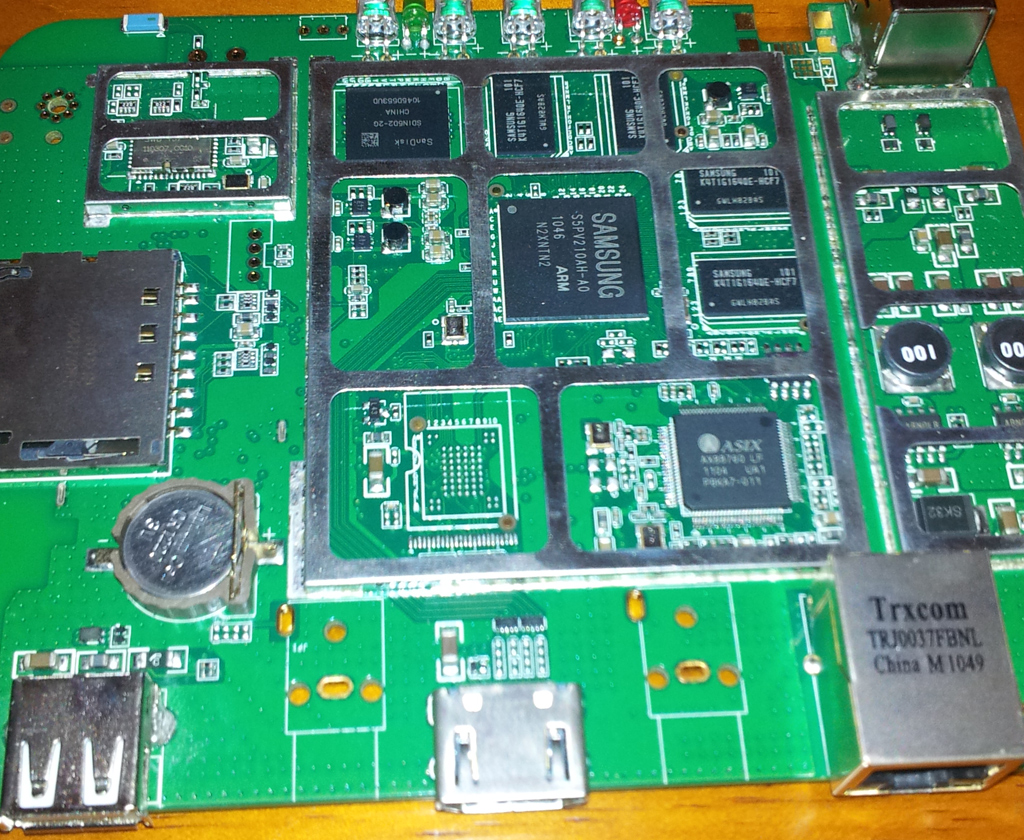

The FlexiVIEW FV-1 Android TV mainboard:

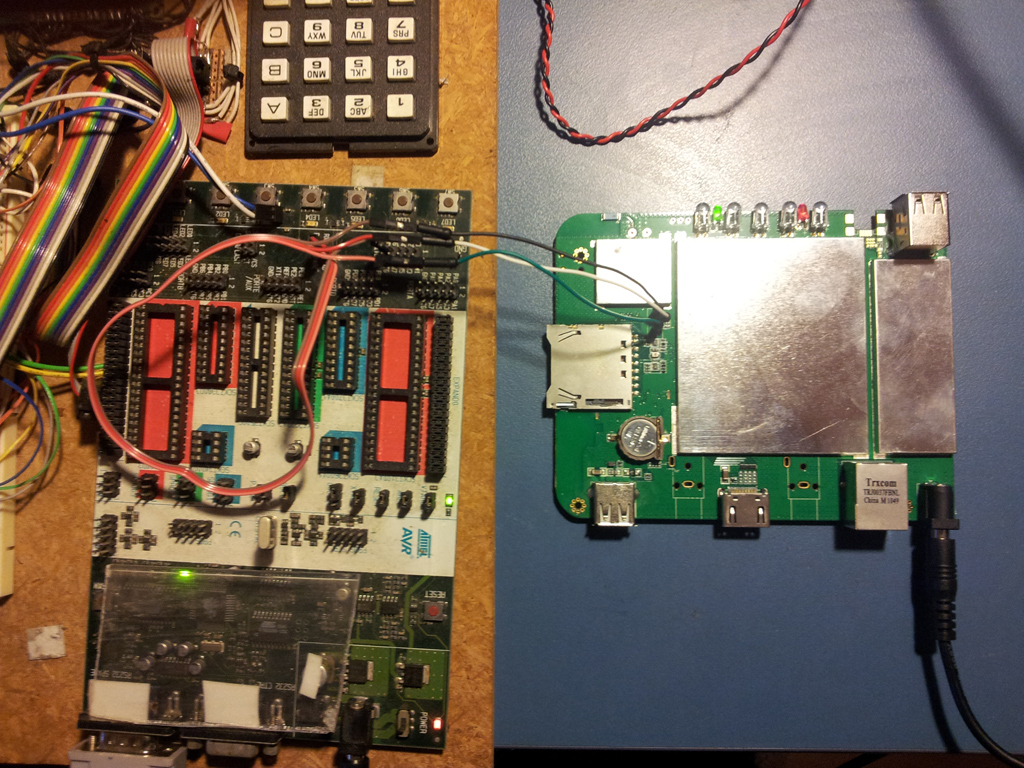

FV-1 Connected to STK-500 AVR Development Board
